Original Henderson / Sommer keyfob
(40Mhz version shown)
dimensions - 66mm x 45mm x 17mm
weighs 40 grams ! |
Our mini keyfob alternative
dimensions - 41mm x 26mm x 10mm
weighs just 8 grams ! |
|
From
Germany's leading garage
door operator manufacturer
German Quality at your Fingertips ! |
 |
|
An ideal upgrade for older
garage door operators |
|
|
Our mini keyfob upgrade can be
fitted
to Henderson / Sommer Aperto, Duo
Marathon, & Sprint door operators
(suits 27.045Mhz,
40.685Mhz and 868Mhz models)
Our upgrade comprises of a new 433Mhz remote control
transmitter and a matching
radio receiver module that
can be fitted to your existing
garage door operator.
The Seip EKR1MCG receiver unit should be connected
to the main
terminal block on Aperto, Duo, Marathon & Sprint, models as shown here,
the Seip receiver unit can be mounted inside the existing
enclosure using the self adhesive pads supplied |
|
Henderson/Sommer Aperto
Click image to enlarge

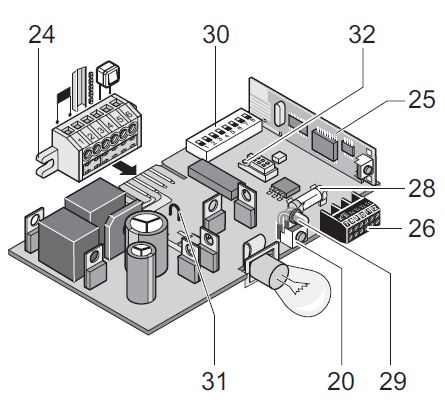

Connect the Seip receiver wires to connector No: 24
(see above) inside the Aperto 868 housing as follows:
terminal 5 = impulse (blue wire)
terminal 6 = impulse (blue wire)
terminal 1 = black (24 volt supply to
receiver)
terminal 2 = red (24 volt supply to receiver)
Note: an alternative 24v supply is also available on
terminals 3 & 4 on the front panel beside the lamp)
|

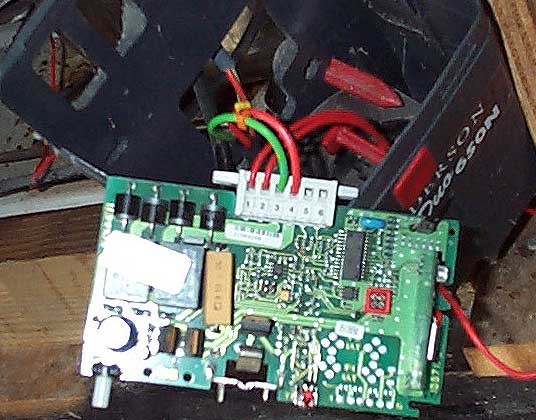

Henderson/Sommer Duo 650N
Click image for more detail
Connect the new Seip receiver as follows:
terminal 1 = red (24 volt supply to
receiver)
terminal 2 = black (24 volt supply to receiver)
terminal 5 = impulse (blue wire)
terminal 6 = impulse (blue wire) |
|
|

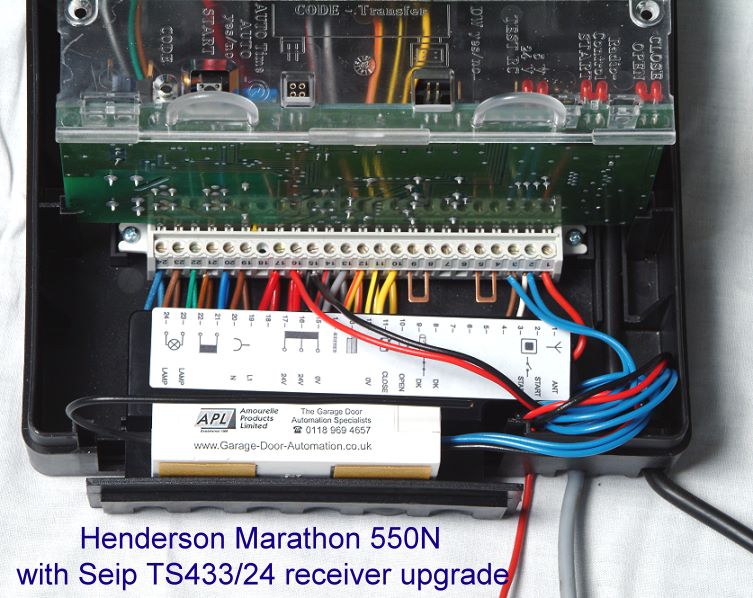

Henderson/Sommer Marathon S550N
Click image for more detail
Connect the new Seip receiver as follows:
terminal 2 = impulse (blue wire)
terminal 3 = impulse (blue wire)
terminal 15 = black (24 volt supply to
receiver)
terminal 16 = red (24 volt supply to receiver) |

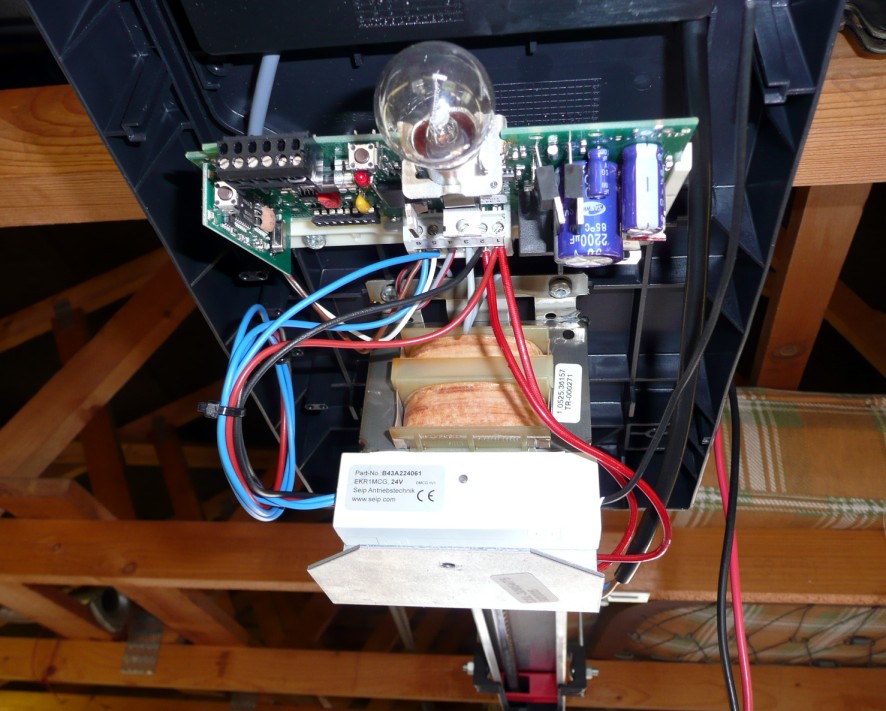

Henderson/Sommer Sprint S550N
Click image for more detail
Connect the new Seip receiver as follows:
terminal 1 = red (24 volt supply to
receiver)
terminal 2 = black (24 volt supply to receiver)
terminal 5 = impulse (blue wire)
terminal 6 = impulse (blue wire) |
Note: It's essential that your system functions normally
from the pushbutton so please
confirm that your door works from this before ordering a Seip remote control
upgrade
If
a
pushbutton switch has not been
installed you can test the operator by locating the pushbutton
terminals on your door operator (see above) and briefly shorting them together with a
metal object.Click image to enlarge
Seip EKR1MCG receiver upgrade
(illustrated with mini & midi keyfob options)
receiver module dimensions 90mm x 30mm x 19.5mm |
|
Simple D.I.Y. Installation
We even supply
a screwdriver !
|
Can be installed and working
within about 5 minutes with
no technical knowledge |
*
*
