Remote control handsets |
|
Marantec 418Mhz and 433Mhz transmitters |
|
Note: Both types are identical in appearance but 433Mhz keyfobs are not compatible
with
418Mhz systems so please don't
submit an order until
you've
confirmed the radio frequency of your system.
The radio
frequency is printed on the back of all
Marantec transmitters and is also marked on the receiver module |
|
The 418Mhz type has
been
discontinued click here
for an upgrade
kitThe 418Mhz frequency was withdrawn from public use by the Home Office
in December 2007 and re-allocated to the European
TETRA radio system
for the emergency services. (see the
Radiocommunications Agency website for details) |
|
|

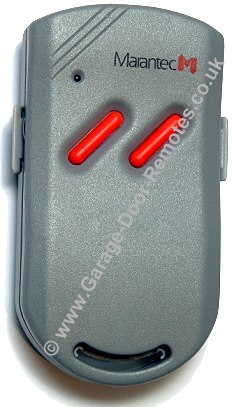

Standard keyfob type 212
90mm x 47mm |

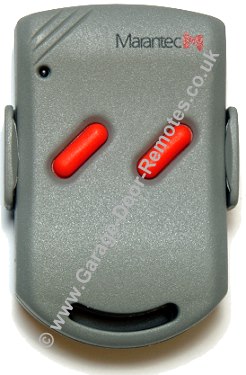

Mini keyfob type 222
60mm x 37mm |
Micro keyfob type 231
44mm x 28mm |
211
- single channel - discontinued
212 - two channel - discontinued |
221
- single channel - discontinued
222 - two channel - discontinued
224 - four channel - discontinued |
231 - single channel -
discontinued
232 - two channel -
discontinued |

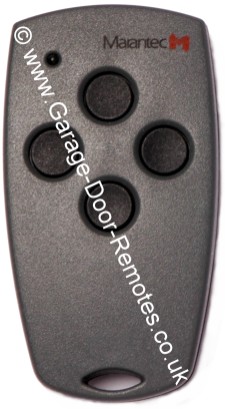

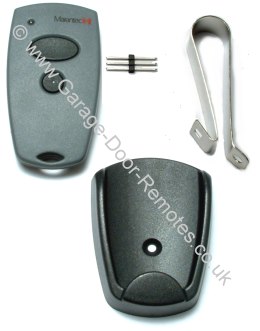

The new type keyfobs shown below replace all discontinued Marantec 433Mhz transmitter types,
the Marantec 418Mhz system is discontinued but an upgrade kit is available >>
click for details |
|
|
(up to 10% mixed quantity discount available on these
transmitters)
Quantity Discounts
are calculated automatically
(just enter the quantity required and click 'Buy Now')
|
Compatibility
Each remote control system manufacturer uses a unique security code protocol,
therefore these transmitters can only be used with the specific make &
model
of equipment for which they were intended and will not be compatible with any
other make of remote control system even if the radio frequency is the same |
Radio
frequency
The Marantec 'Digital' remote control system was originally introduced on 418Mhz,
production switched over to the 433Mhz frequency during mid 2000, a new 868Mhz system was introduced in 2004,
the operating frequency is identified on the back of the keyfob and on the receiver module casing
Security
Coding

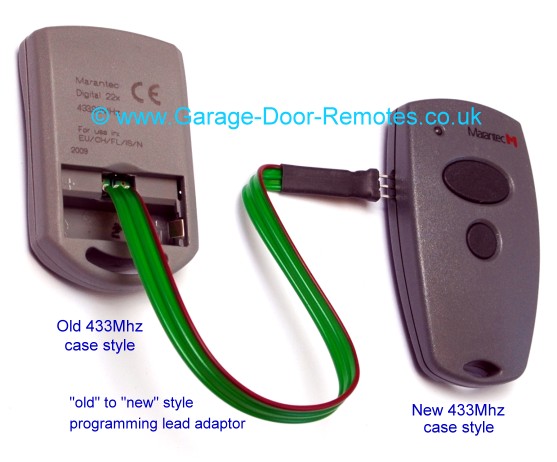

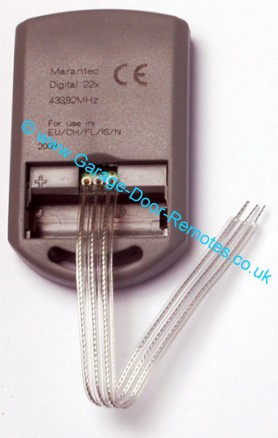

If you have an existing (working) remote control transmitter, the
unique security code can be 'cloned' from an original
transmitter using the
special
programming cable and instructions enclosed with each handset. If
you no longer have a 'working' transmitter a new transmitter
must be programmed by following the procedure in the
users instruction manual supplied with your Marantec door
operator. Copies can be downloaded from the
Marantec
website
|
|
Older Marantec comfort series operators had large 27Mhz handheld remote control transmitters,
these had a ten way DIP switch inside the battery compartment to enable the security code to be set, these
systems require an upgrade kit
Note: Some garage door distributors supplied an alternative brand of radio control system with Marantec operators so you may see your handset pictured on our main
handsets webpage |
|
|
|
click here
for 868Mhz remote controls for the current Marantec comfort series operators |
|
|
Batteries & Accessories
(quantity discount available on batteries,
enter quantity required to display) |
|
 |
3 Volt
Lithium 'coin' battery type CR2032
to suit type 302 & 312 keyfobs
price
£
excl. VAT
|
|
Click image to enlarge
 |
12
Volt Alkaline battery
type GP23A
(alt. ref 23AE)
(equivalent to types: LR23A, LRV08, 8LR932,
MN21, V23GA, E23A, LR23AE)
price
£
excl. VAT
|
Domino numeric
digital entry keypad |
Domino
external digital numeric entry system
The DOMINO keyless
digital entry
system is
a simple
and
secure way to open and close
your garage door
without the need for a key or remote
control
(three 'AA' batteries
included)
Our Ref: GD-1
price
£
excl. VAT
|
|
|
