old case style Cardale
DC series keyfob
(418Mhz & original 433Mhz) |

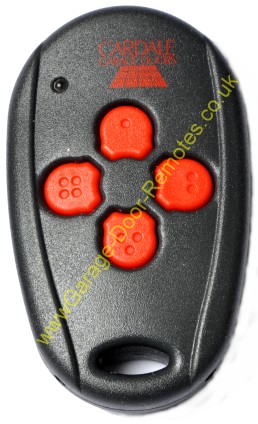

later case style Cardale
DC series keyfob
(new 433Mhz) |
The one
& two
button keyfobs are no longer available but the four button
version
which can provide individual control of up to four separate doors
are
fully compatible with Cardale 'DC series' operators, Compton
AutoLift II
and E-King garage door operators
Radio
Frequency
(approximate production timeline dates)
Up to mid 2000 = 418Mhz
Mid 2000 to mid 2004 = 433.92Mhz

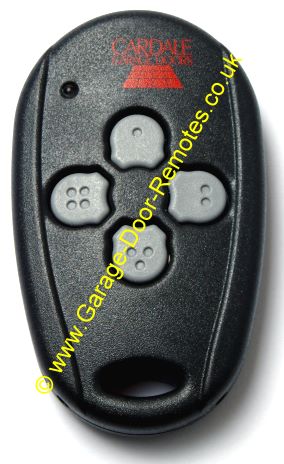

Mid 2004 onwards = 868Mhz
You must order a replacement on the same frequency, the operating frequency
is printed on the back of the
keyfob transmitter and also on the receiver casing.
Note: 418Mhz transmitters are now
discontinued because this frequency has
been withdrawn from public use by the Home Office and re-allocated to the new
European
TETRA
radio system. (see the
Radiocommunications Agency website
for details)
Click here for details of a suitable upgrade kit
Compatibility
Each
remote control system manufacturer uses a unique security code
protocol,
therefore these Cardale DC series/E-King transmitters will not be compatible
with any other
make or model of remote control system even if
the radio frequency is the same
Security
Coding

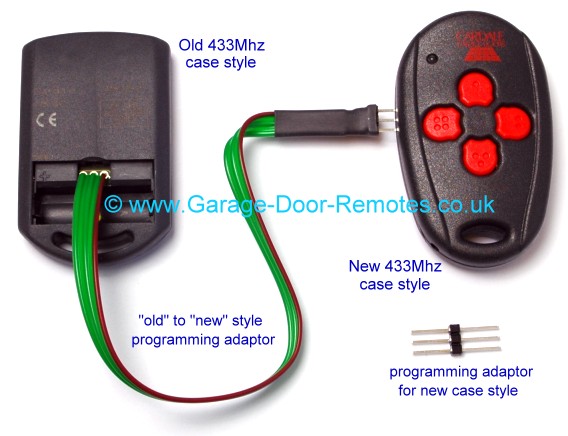

If you have an existing (working) remote control transmitter, the
security code
can be 'cloned' from an original transmitter using
the
special programming
cable enclosed with each handset.
programming procedure
If
you no longer have a 'working' transmitter a new transmitter
must be
programmed by following the procedure in the original
Cardale door
operator users instruction manual - see below
|
