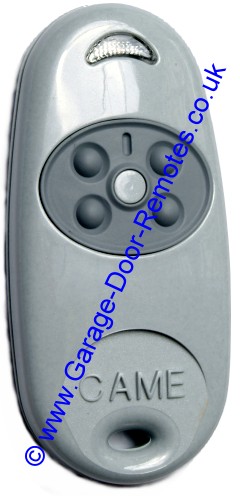

Compatible with the following CAME 433Mhz models: TOP432M - TOP434M, TOP432S, TOP432NA
Programming a new TOP432NA or TOP434NA transmitter from an existing working transmitter

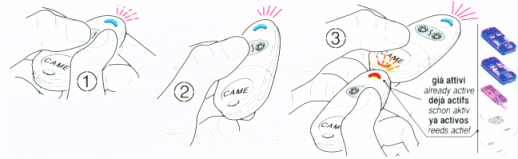

Step1/ Take the new transmitter that you wish to programme and press the two buttons simultaneously until
the red LED starts flashing rapidly, (the LED flashes slowly initially and then rapidly)
Step 2/ Now press the button
you wish to program, the LED stays on and the fob will
remain in 'learn mode' for 10 seconds (step 3 must be performed within this 10 second period)
Step 3/ Take an existing transmitter
that currently operates your gate/door, and position it against the rear of
the new transmitter as illustrated in image (3)
below and press the channel button on the teaching transmitter that you want to copy.
The LED on the new transmitter should flash 3 times to confirm the code has
been successfully copied, the new transmitter is
now ready for use.
To programme another channel follow steps 1
to 3 above.
