Remote control upgrade kit for obsolete Autoglide systems Cardale Garage Doors
Cardale Steel-Line & AutoGlide operators produced prior to 2000 used 418Mhz radio
transmitters, the blue front type 433Mhz AutoGlide III keyfob was launched at the end
of 2000 but regretfully Cardale are no longer able to supply either of these transmitters
Cardale Autoglide III keyfob

Availability: discontinued
  UKTX003 418Mhz keyfob

418Mhz Autoglide II keyfob
type UKTX003
(as supplied with Steel-line &
Autoglide operators until mid 1998)

We have a convenient & easy to fit remote control system upgrade to suit Cardale Steel-Line & AutoGlide garage door operators that can be fitted within about 5 minutes with no technical knowledge!

Our AP433RX2 receiver upgrade unit simply plugs into a normal 13A household mains socket and is supplied with 7Mtrs of low voltage flex for quick & simple connection to the low voltage wall mounted pushbutton switch connections on your existing Autoglide
garage door operator.

Note: It's essential that your Autoglide operator functions normally from the wired-in pushbutton so please confirm that your door works properly from this before ordering a remote control system upgrade.

If a pushbutton switch has not been installed you can test your operator by locating the pale green two pin plug pushbutton terminals on your door operator unit (pale green two pin plug as illustrated left) and briefly shorting the terminals together, this should start the door moving.

The wall mounted pushbutton switch (if fitted) should remain connected to the pale green plug in addition to the new AP433RX2 remote control receiver.




Up to four doors or gates can be
controlled from each AP433TX4 keyfob
(The AP433RX2 is a two channel receiver unit and may
be connected to two separate door or gate motors)

Wiring connections

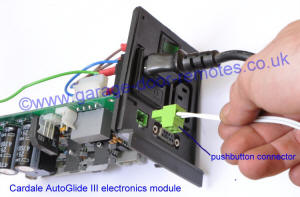

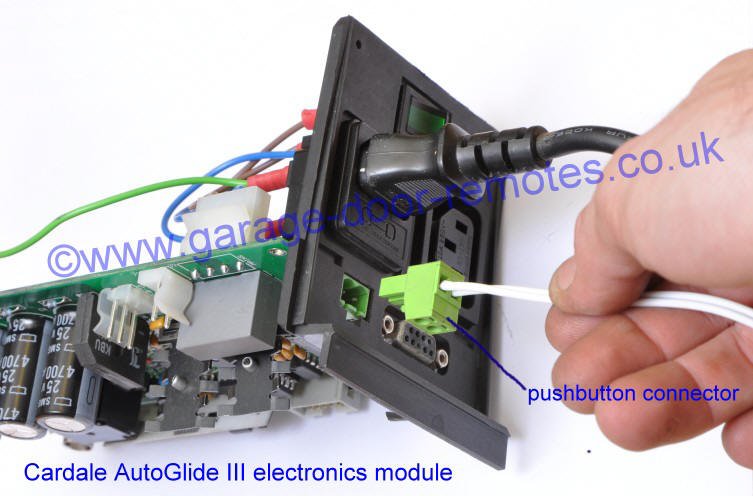

If you have a Cardale Autoglide III operator you'll find a pale green two pin plug beside the black 3 pin mains input plug on the underside of the motor housing as shown below.

Click image to enlarge
Cardale Autoglide III

Cardale Autoglide Mk I & II
A pale green two pin plug for the pushbutton switch will be found inside the triangular wall mounted control box on an Autoglide Mk I or Mk II operator.

Click image to enlarge

AP433RX2 mains powered receiver unit
(illustrated with AP433TX4 keyfob transmitter)
receiver module dimensions 95mm x 47mm x 43mm
keyfob dimensions - 53mm x 33mm x 13.5mm

Receiver unit: excl. VAT (no keyfob included)
Keyfob transmitter: excl. VAT (for one)
(discount price for two or more keyfobs: )

How to order:
To specify the contents of your upgrade
kit, select your desired quantity of keyfobs
from the drop-down lists and click 'Buy Now'

Total quantity of keyfobs required:



order before 4pm for same day despatch



The total price for your selection will be displayed at the checkout

•  Fitting Instructions  •  Frequently Asked Questions  •

•  Product Reviews from our Customers  •

12 Month Warrantee

UK Home Office & CE approved for use in the UK and Europe

Conforms to MPT 1340 specification

CE


Spares, Accessories & Batteries
Click image to enlarge
Replacement AP433TX4 keyfob transmitter
for use with AP433RX2 receivers only.
(can provide individual control of
up to four separate doors or gates)

GP27A 12v battery included (alt. ref 27A)
price for one: excl. VAT
2+ qty price: each

Qty:


12 Volt Alkaline battery type GP27A (alt. ref 27A)
Equivalent to types: LR27A & MN27
Dimensions: L 27.5mm x 7.6mm dia.
Price: excl. VAT
(quantity discount available on batteries,
enter quantity required to display price)

Qty:


Replacement two pin plug for pushbutton socket
(as used on all Cardale Autoglide operators
)
Price: excl. VAT

Qty:



Domino numeric
digital entry keypad
Domino external digital numeric entry keypad

The DOMINO keyless digital entry system is a simple
and secure way to open and close your garage door
without the need for a key or remote control

(three 'AA' batteries included)
Our Ref: GD-1

price: excl. VAT

Frequently Asked Questions

Q/ Will I still be able to use the original hand transmitters ?
A/ Yes - by leaving the original receiver connected and attaching a new AP433RX2
receiver in addition, both new and old transmitters can be used to control a door.

Q/ Can the system control more than one garage door?
A/ Yes, the AP433RX2 is a two channel receiver which can be connected to a second garage door. The keyfob transmitters can provide individual control of up to four doors (or gates)

Q/ Can any alternative remote control transmitters be used with the AP433RX2 receiver?
A/ Yes, in addition to our own AP433TX4 keyfob transmitters, the following
433Mhz
remote control transmitters from other manufacturers may also be used:
Aprimatic TR series, BFT MITT0 series, CAME TOP43 series, Fadini Jubi series, Gibidi DTR
& AU0 series, Seav Motorline 433Mhz series, Seip SKR series, Sentry SEN-H-T1 & SEN-H-T3

Q/ What is the range from which I can control the door ?
A/ Our AP433TX4 keyfobs have a range of approx. 50-75 Mtrs
