Marantec remote control upgrade

24 hour
On-Line shopping

Same Day Despatch

Next-Day delivery option
more info

Which upgrade kit should I choose for
my Marantec garage door operator ?

Seip receiver &
keyfob upgrade

Seip 'Mini' key-fob
The toughest & most durable
mini keyfob transmitter available
dimensions 41mm x 26mm x 10mm
weight: 8gms

Marantec receiver
& keyfob upgrade

Marantec 868Mhz receiver
& keyfob upgrade kit
keyfob dimensions: 71mm x 38mm x 16mm
weight: 26gms

The Seip 433Mhz receiver connects to separate terminals of your Marantec garage door operator so your original Marantec receiver can be left in place. This will enable you to continue to use any original Marantec keyfob transmitters you may have in addition to the new Seip keyfobs (and the wired-in pushbutton switch if fitted)

Up to four doors or gates can be controlled from a Seip keyfob (note: a separate Seip receiver unit will be required for each door or gate motor)

All Seip products are covered by a
Five Year Manufacturers Guarantee

Cost to upgrade with a
Seip 433Mhz upgrade kit
�84.95 inc VAT with one keyfob
�39.95 each inc VAT per additional keyfob
(special offer price when ordered
with a Seip EKR series receiver)

click here to order

The Seip EKR1MCG kit is compatible with
the Home-Link in-car remote control system
from software revision 6 onwards
click here for details

The Marantec 868Mhz upgrade receiver plugs into a socket on your Marantec garage door operator in place of the original Marantec receiver unit or wired-in pushbutton switch (consequently you'll no longer to be able to use your original Marantec transmitters or wired-in pushbutton switch if they were previously using this socket)

The keyfob supplied with Marantec
upgrade kit will control one door only

Marantec remote controls are covered by a
One Year Manufacturers Guarantee

Cost to upgrade with
a Marantec 868Mhz kit
�115.75 inc VAT with one keyfob
�47.70 inc VAT per additional keyfob

click here to order

The Marantec 868Mhz
system is compatible with
Home-Link in-car remote control system
but the vehicle must have software version 7

We have a Marantec Comfort 250 electric garage door opener with 418Mhz remotes and they both needed replacing but as they are no longer available from Marantec we ordered a Seip EKR1MCG remote control upgrade kit on Friday and it was with us on the Saturday morning! It took my partner 5 minutes to fit and worked perfectly! I cannot recommend this company enough. The instructions and information provided was very helpful and the price was very good. Kim - Lancing West Sussex

I fitted a Seip EKR1MCG receiver upgrade kit to my Marantec comfort 250. Simple installation and it worked perfectly straight away. Superb service from Amourelle - buy with confidence.
Paul, Bristol.

Most Marantec Comfort series garage door operators including models 130 through to model 252 are fitted with three terminals marked 1, 2 & 3 for an alternative remote control system to be connected. The Seip EKR1MCG receiver unit should be connected as follows:

black/blue wire to terminal 1 (left terminal)
blue wire to terminal 2 (centre terminal)
red wire to terminal 3 (right terminal)

You may have a wall mounted pushbutton switch connected to terminals 1 & 2, in which case these wires should remain connected in addition to the new Seip receiver

Note: If your Marantec Comfort series garage door operator has a green five way terminal block instead of a three way block the wires from the Seip EKR1MCG receiver should be connected to the terminals on the five way connector block as follows:

Connect the red wire from the Seip receiver to the far left terminal
Connect black & blues wires from Seip receiver to the second terminal (counting from left)
Connect blue wire from Seip receiver to the third terminal
(counting from left)

(the four & fifth terminals are not used)

Click image for more detail

Marantec Comfort 150 - 160 series

Installation Tips:
Some Marantec models such as the Comfort 250 have a detachable 3 pin terminal block which can be un-plugged to provide easy access to the terminal screws

If you no longer intend to use any of the original Marantec transmitters, the original Marantec receiver unit (grey box pictured above) can be unplugged and removed (see F.A.Q.)

For Marantec Comfort 210 the four wires from the
Seip EKR1MCG receiver unit should be connected
to the printed circuit module as shown right:

Connect the black wire to terminal 7 (with the jumper link)
Connect the red wire to terminal 5
Connect the two blue wires to terminals 3 & 4
(with the two wires from your wall mounted pushbutton switch if fitted)

For Marantec Comfort models 130 & 140 click here

Click image to enlarge

Marantec Comfort 210

Note: A Seip receiver upgrade cannot be fitted to Marantec Comfort models 100 or 120

Choice of keyfob style transmitter to suit your lifestyle

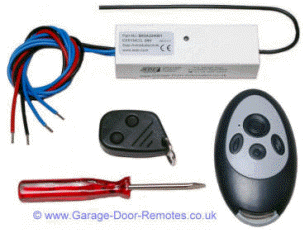

'Mini' key-fob transmitter SKRJ433 The toughest & most durable keyfob transmitter available, it can be kept on your keyring or fitted in your car to control up to two doors or gates dimensions 41mm x 26mm x 10mm weight: 8gms - CR1616 lithium batteries included	'Midi' key-fob transmitter SKR433-1 can provide individual control of up to four receivers dimensions 83mm x 47mm x 18mm weight 27gms - LR23A battery included
Choice of termination to suit your Marantec operator type
Three wire ends for connection to Marantec Comfort models with three terminals marked 1, 2 & 3 (see above for details)	Four wire ends for connection to Marantec Comfort 210 (see above for details)

Receiver unit: �45.00 inc VAT (no keyfob included)
Keyfob transmitters: �39.95 each inc VAT
(special offer price when ordered with a Seip EKR series receiver)

How to order: To specify the contents of your upgrade kit, select the receiver termination type you require from the drop-down list and choose the quantity of receiver units you require (one per door) and your desired quantities of 'Mini' & 'Midi' keyfobs and click 'Buy Now' The total price for your selection will be displayed at the checkout	Receiver termination:
	Quantity of receiver units:	Qty in stock:
	Total quantity of Mini keyfobs:	Qty in stock:
	Total quantity of Midi keyfobs:	Qty in stock:
	order before 4pm for same day despatch

Conforms to MPT 1340 specification

Seip EKR1MC series receivers are compatible with the Home-Link in-car remote control system*
as offered by the following European car manufacturers as a factory fitted option:-

compatible

Alfa Romeo
Aston Martin
Audi
Bentley
BMW

Chrysler
Jaguar
Lamborghini
Land Rover
Lexus

Maybach
Mercedes-Benz
MINI
Porsche

Rolls-Royce
Toyota
Volkswagen
Volvo

Note: the car must have Homelink system with software rev. 6 or later - to verify, refer to Homelink Instructions (page 7)

Frequently Asked Questions

Q/ If my existing electric operator fails, can the new Seip keyfobs be used with a replacement electric operator ?
A/ Yes - Seip are Europe's leading garage door operator manufacturer and the keyfob transmitters supplied with our upgrade kits are compatible with the Seip TS series electric door operator range and if you decide to purchase a replacement Seip electric door operator from us within 12 months of buying a remote control upgrade we'll buy back the unwanted Seip receiver unit at the original purchase price less 50%.

Q/ Can I use the spare button(s) on Seip keyfobs to control other doors or items around the home ?
A/ Yes - Seip produce a range of receivers to enable gates, water pumps & lights etc. to be controlled by spare buttons on the keyfob

Q/ Will I still be able to use the original hand transmitters ?
A/ Yes - by leaving the original Marantec receiver connected and attaching a new Seip receiver in addition, both new and old transmitters can be used to control a door (please note :- you won't benefit from the improved security of the Seip rolling code technology unless the old receiver is disconnected)

Q/ What is the range from which I can control the door ?
A/ Seip keyfobs have a range of approx. 75 - 100 Mtrs
