Hormann 868Mhz remote control hand transmitters

Hormann 868Mhz remote control transmitters for Ecomatic, SupraMatic ProMatic & Rotamatic garage door operators manufactured from 2005 - 2011
also compatible with 868Mhz Hormann
STA & DTA gate operators

Hormann transmitters also compatible with
the following Garador electric operators:
Garamatic 7, Garamatic 9, Garamatic 10, Garamatic 20, Garador Auto Expert & Auto M2

For 40.685Mhz version (grey buttons) Click Here

868Mhz transmitters
to suit operators manufactured from 2005 - 2011
(Identified by grey case with light blue buttons)

Click image to enlarge

The Light Blue buttons on these transmitters indicate the operating frequency is 868Mhz

868Mhz Hand Transmitter
Hormann case style HS 4
(as Garador Pt No. 437.572)
dimensions: 110mm x 38mm x 14mm
weight: 34gm (inc. battery)
12 Volt LR23A battery

Availability: discontinued replaced by new BiSecure range below

868Mhz Mini transmitter
Hormann case style HSM 4
(as Garador Pt No. 437.446)
dimensions: 60mm x 38mm x 14mm
weight: 24gm (inc. battery)
12 Volt LR23A battery

Availability: discontinued replaced by new BiSecure range below

868Mhz Micro keyfob transmitter
Hormann case style HSE 2
(as Garador Pt No. 437.456)
dimensions: 60mm x 23mm x 14mm
weight: 18gm (inc. battery)
keyring & 6 Volt LR11A battery

Availability: discontinued replaced by new BiSecure range below

Hormann have ceased production of the above transmitters but the
new BiSecur range are compatible with the above 868Mhz transmitters

Hormann BiSecur system
fully compatible with all Hormann & Garador 868Mhz systems
including blue button types as supplied from 2005 to 2011

Click image to enlarge

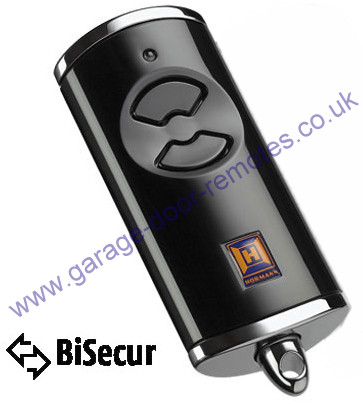

Black BiSecur Micro keyfob transmitter
Hormann ref: HSE 2 BS Black
Can provide individual control of up to two doors or gates.
Fully compatible with all Hormann & Garador 868Mhz systems
including blue button types as supplied from 2005 to 2011
dimensions: 64mm x 29mm x 15mm
weight: 30gm (inc. battery)
keyring & 1x 3v battery type CR2032 included

We are awaiting information regarding availability of this product.

Please contact us for alternatives and assistance.

Click image to enlarge

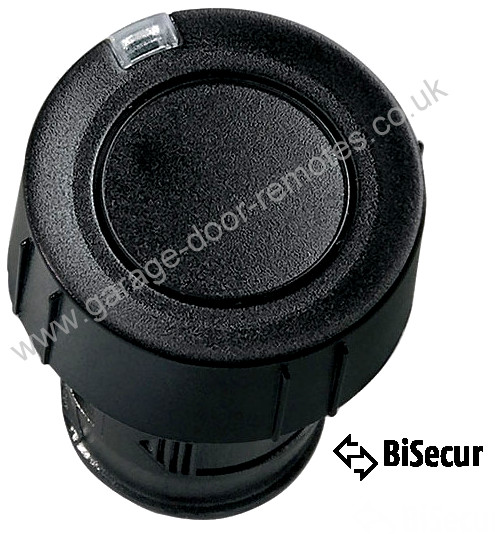

BiSecur single channel cigar lighter socket style transmitter
Hormann ref: HSZ1 BS
Fully compatible with all Hormann & Garador 868Mhz systems
including blue button types as supplied from 2005 to 2011
dimensions: 29mm dia x 40mm deep
weight: 20gm (inc. battery)
1x 3v battery type CR2 included

Temporarily out of stock

We are awaiting information regarding availability of this product.

Please contact us for alternatives and assistance.

• Programming Procedure •

Quantity Discounts are calculated automatically
and apply to mixed orders of any case style
(just enter the quantity required and click 'Buy Now')

Each remote control system manufacturer uses a unique security code protocol,
therefore the above transmitters can only be used with the specific make & model
of equipment for which they were intended and will not be compatible with any
other make of remote control system even if the radio frequency is the same

Important Note Regarding Compatibility

The colour of the buttons on these Hormann transmitters indicate the operating frequency and you must order a replacement on the
same frequency as your original handset.

grey case with light blue buttons = 868 Mhz
grey case with light grey buttons = 40.685 Mhz
black case with green buttons - click for details

The operating frequency of the system is also
printed on the receiver unit casing as shown here

Click Here for 40.685Mhz transmitters

Click image for details

If your original transmitter has light grey buttons
as shown above you have a 40.685Mhz system

We have a simple upgrade
for Hormann door operators

Click here for details
of our upgrade

www.garage-door-remotes.co.uk are a specialist
mail order supplier of remote control transmitters

Note: we do not supply any other spare parts
for Hormann or Garador electric operators

Accessories & Batteries (quantity discount available on batteries, enter quantity required to display)

	12 Volt Alkaline battery type GP23A (alt. ref 23AE) as used in series 2 Hormann HS & HSM keyfobs (equivalent to types: A23, LRV08, 8LR932, MN21, V23GA, E23A, LR23A) dimensions: L 27.5mm x 10mm dia. price � excl. VAT Qty:

	6 Volt Alkaline battery type LR11A as used in series 2 Hormann/Garador HSE keyfobs (Equivalent to types: 11A, GP11A, MN11 & L1016) dimensions: L 16mm x 10mm dia. price � excl. VAT Qty:

	3 Volt Lithium 'coin' battery type CR2025 as used in series 2 Hormann transmitters HSZ1 & HSZ2 (not current HSZ1 BS & HSZ2 BS) price � excl. VAT Qty:

	3 Volt Lithium 'coin' battery type CR2032 as used in Hormann BiSecur transmitters HS 4 BS & HS 5 BS price � excl. VAT Qty:

	24V 10W bayonet courtesy bulb (SBC fitting) Hormann Ref: 438313 As used on the following garage door operators: Hormann Ecostar, Ecomatic, Promatic series 1, Liftronic & Turbo 75, Garador Auto Expert, Garamatic 7 & 9, price: � each excl. VAT Qty:

Domino numeric digital entry keypad	Domino external digital numeric entry system The DOMINO keyless digital entry system is a simple and secure way to open and close your garage door without the need for a key or remote control (three 'AA' batteries included) Our Ref: GD-1 price � excl. VAT
