Remote control system upgrade for
Chamberlain garage door operators

We have a convenient & easy to fit keyfob style upgrade to suit all garage door operators manufactured by Chamberlain including the following popular brands:

Chamberlain Remote Control

Chamberlain Liftmaster Screwfix Direct
Wickes DIY Catnic AutoDor Motorlift compatible remote controls.


UT2-433EG two channel keyfob keyfob

Up to two doors or gates can be
controlled from each UT2-433EG keyfob
(The AP433RX2 is a two channel receiver unit and may
be connected to two separate door or gate motors)

This keyfob replaces the AP433TX4

The system comprises of a new 433Mhz radio receiver module that can be fitted to your existing garage door operator within about 5 minutes with no technical knowledge.

Note: It's essential that your system functions normally from the pushbutton terminals so please confirm that your door works from this before ordering a remote control system upgrade
(If you are unsure which terminals you need to connect to on your operator, please click here to contact our friendly technical support staff who are on standby to assist with any query.)

  Simple D.I.Y. Installation

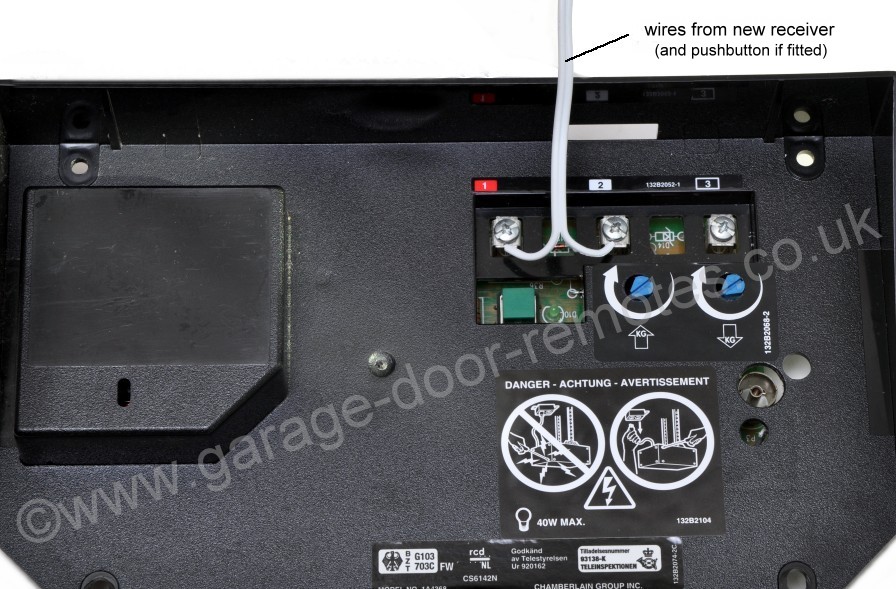

Our AP433RX2 receiver upgrade unit simply plugs into a normal 13A household mains socket and is supplied with 7Mtrs of low voltage flex for connection by two wires to the low voltage wall pushbutton switch connections labelled '1' (red) and '2' (white) on your existing Chamberlain garage door operator as shown below. (your wall mounted door control pushbutton, if fitted will also be connected to these terminals)

Click image to enlarge

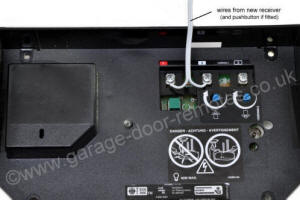

typical Chamberlain garage door operator connections

Click image to enlarge

AP433RX2 mains powered receiver unit
(illustrated with UT2-433EG keyfob transmitter)

Receiver unit: £ excl. VAT (no keyfob included)
Keyfob transmitter: £ excl. VAT (for one)
(discount price for two or more keyfobs: £)

How to order:
To specify the contents of your upgrade
kit, select your desired quantity of keyfobs
from the drop-down lists and click 'Buy Now'

Total quantity of keyfobs required:



order before 4pm for same day despatch



The total price for your selection will be displayed at the checkout

•  Fitting Instructions  •  Frequently Asked Questions  •

•  Product Reviews from our Customers  •

12 Month Warrantee

UK Home Office & CE approved for use in the UK and Europe

Conforms to MPT 1340 specification

CE


Spares, Accessories & Batteries
Click image to enlarge
Replacement AP433TX4 keyfob transmitter
for use with AP433RX2 receivers only.
(can provide individual control of
up to four separate doors or gates)

GP27A 12v battery included (alt. ref 27A)

Click image to enlarge
Replacement UT2-433EG keyfob transmitter
for use with AP433RX2 receivers only.
(can provide individual control of
up to two separate doors or gates)

GP27A 12v battery included (alt. ref 27A)
price for one: £ excl. VAT
2+ qty price: £ each

Qty:


12 Volt Alkaline battery type GP27A (alt. ref 27A)
Equivalent to types: LR27A & MN27
Dimensions: L 27.5mm x 7.6mm dia.
Price: £ excl. VAT
(quantity discount available on batteries,
enter quantity required to display)

Qty:



Domino numeric
digital entry keypad
Domino external digital numeric entry keypad

The DOMINO keyless digital entry system is a simple
and secure way to open and close your garage door
without the need for a key or remote control

(three 'AA' batteries included)
Our Ref: GD-1


Frequently Asked Questions

Q/ Will I still be able to use the original hand transmitters ?
A/ Yes - by leaving the original receiver connected and attaching a new AP433RX2
receiver in addition, both new and old transmitters can be used to control a door.

Q/ Can the system control more than one garage door?
A/ Yes, the AP433RX2 is a two channel receiver which can be connected to a second garage door. The keyfob transmitters can provide individual control of up to two doors (or gates)

Q/ Can any alternative remote control transmitters be used with the AP433RX2 receiver?
A/ Yes, in addition to our own UT2-433EG keyfob transmitters, the following
433Mhz
remote control transmitters from other manufacturers may also be used:
Aprimatic TR series, BFT MITT0 series, CAME TOP43 series, Fadini Jubi series, Gibidi DTR
& AU0 series, Seav Motorline 433Mhz series, Seip SKR series, Sentry SEN-H-T1 & SEN-H-T3

Q/ What is the range from which I can control the door ?
A/ Our UT2-433EG keyfobs have a range of approx. 50-75 Mtrs
